Steel Map Cabinet

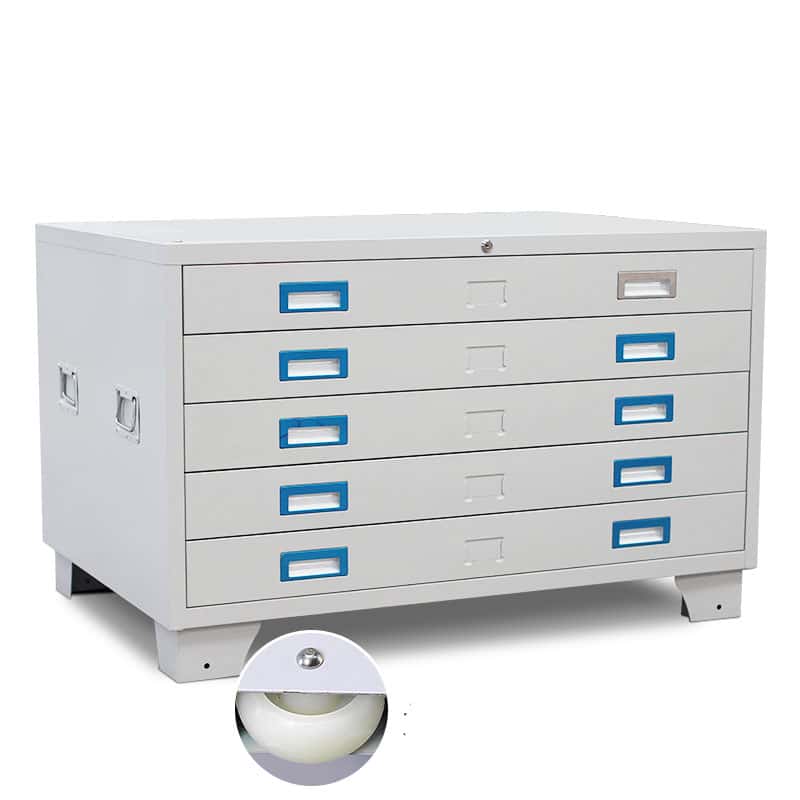

Introduction of Heavy-Duty 5-Drawer Steel Map Cabinet

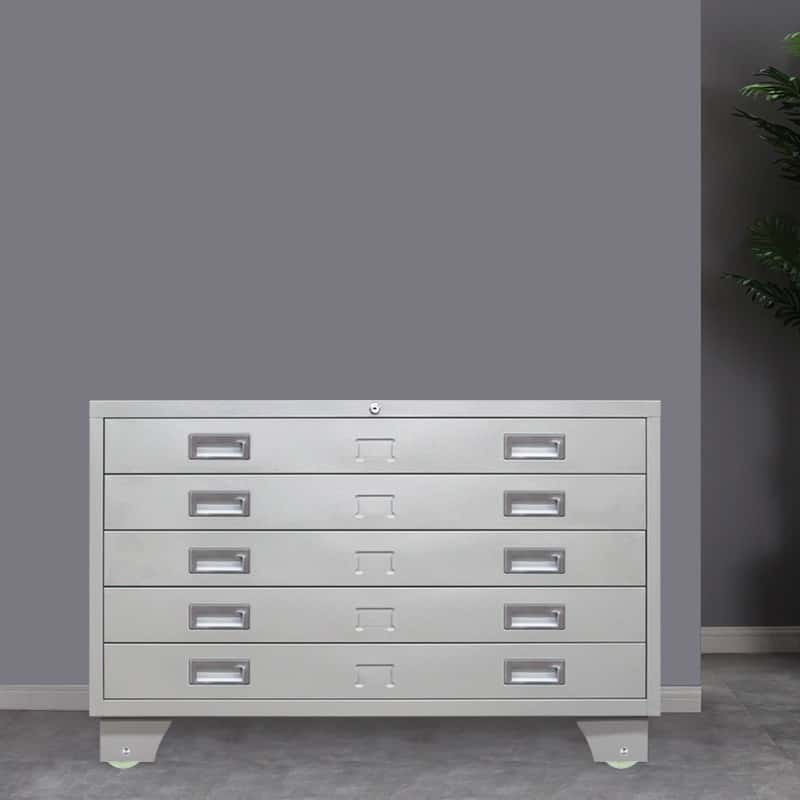

The Outstar Heavy-Duty 5-Drawer Steel Map Cabinet (Model OS–DT1) is a specialized, large-format filing storage unit engineered for architectural firms, engineering offices, government archives, mapping agencies, schools, and museum galleries. Specifically designed to keep large blueprints, geographical maps, artwork prints, and A0/A1 technical drawings lying completely flat, the OS–DT1 prevents paper curling, creasing, and tearing. Crafted from high-gauge cold-rolled steel with precision silent slide rails, this flat file cabinet combines structural durability with organized archive management.

Features of Heavy-Duty 5-Drawer Steel Map Cabinet

• Flat-Storage Protection for Large Formats: Extra-wide 5-drawer design allows A0, A1, and A2 size architectural drawings, maps, and artwork to be stored lying flat, eliminating creases and document deterioration caused by folding or rolling.

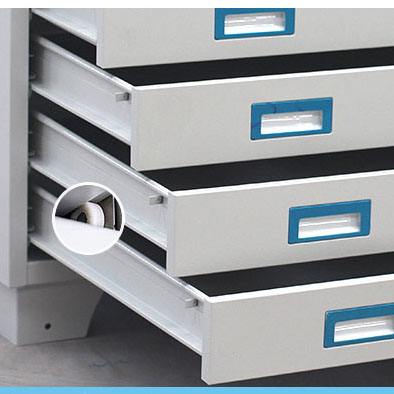

• Precision Heavy-Duty Silent Slide System: Engineered with three-section ball-bearing slides or roller guide rails, ensuring silky-smooth, noise-free drawer operation even under heavy full-load paper weight. Drawers maintain a completely level position when fully extended.

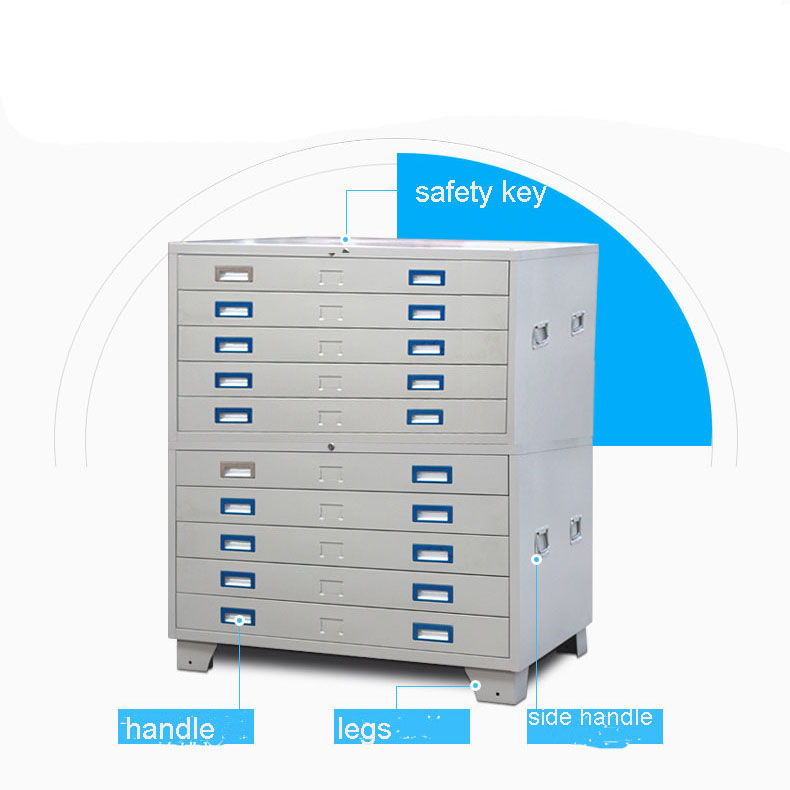

• Central Security Lock & Label Holders: Equipped with a central lock that secures all 5 drawers simultaneously to guard confidential blueprints. Each drawer front features built-in label/business card holders for fast document indexing and retrieval.

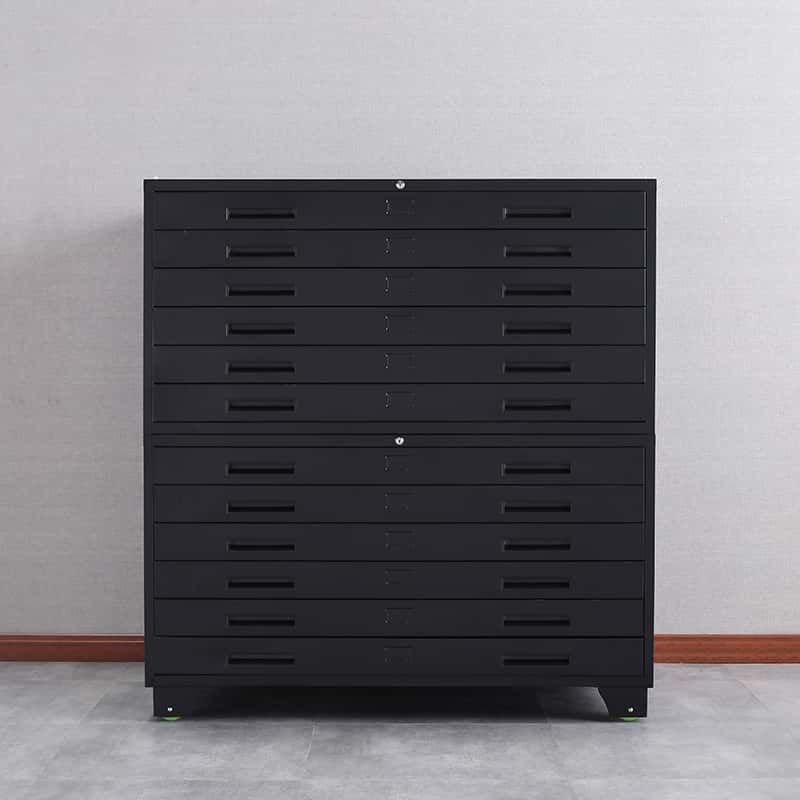

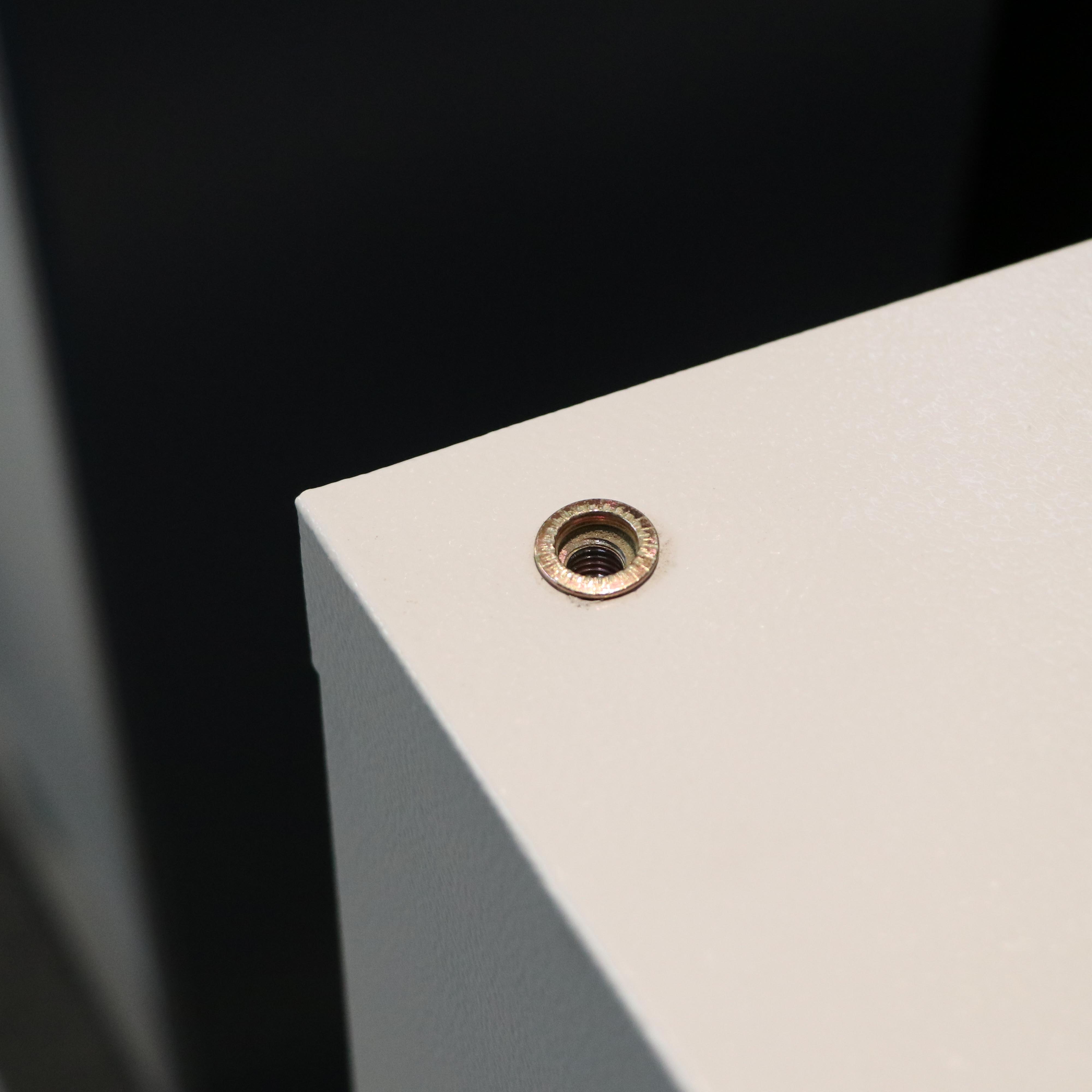

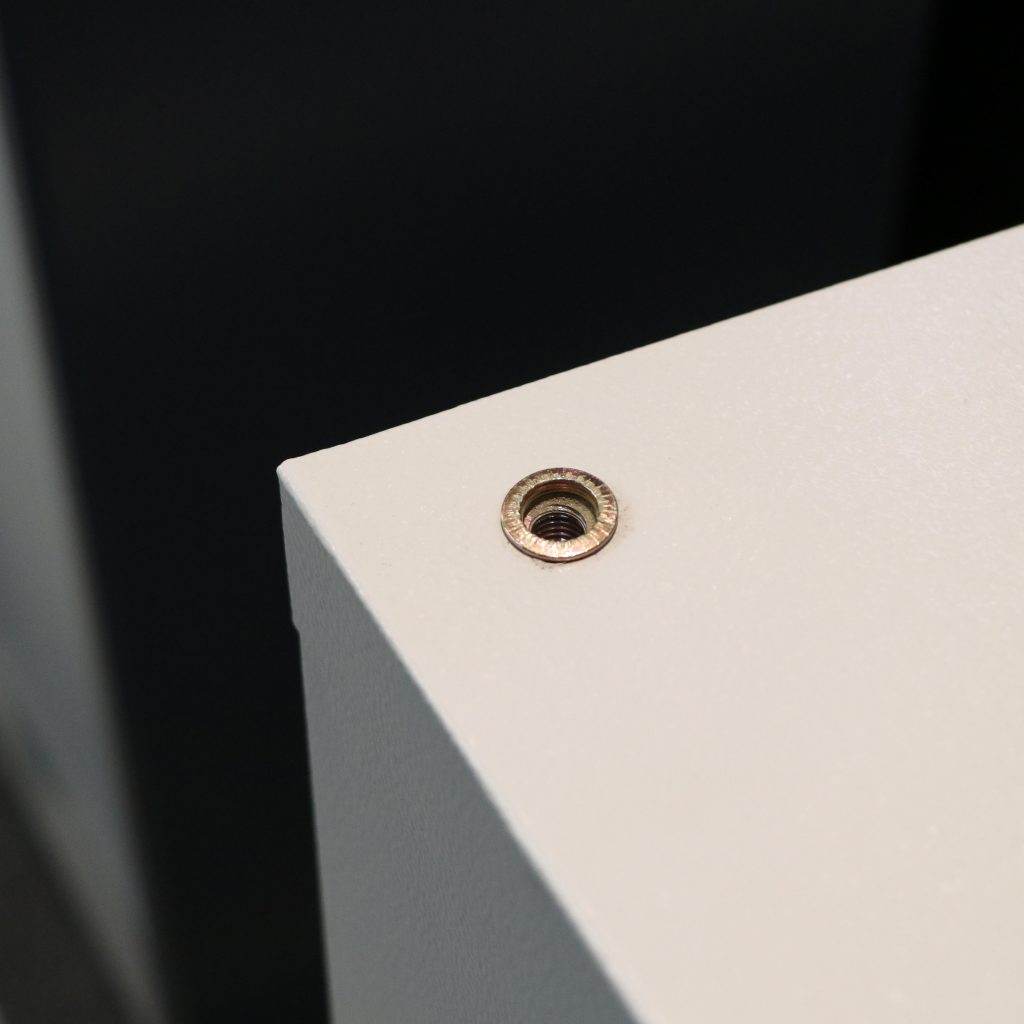

• Stackable Modular Design & High Load-Bearing Capacity: Built with reinforced heavy-gauge steel supports, allowing multiple 5-drawer units to be stacked vertically to maximize office floor space without structural deformation.
• Eco-Friendly & Anti-Rust Surface Finish: Treated with an advanced electrostatic powder coating that passes rigorous anti-corrosion tests, protecting documents from moisture and ensuring long-term scratch resistance.
• Customizable Hardware & Modular Base: Offers flexible customization for metal or plastic handles, optional digital keypad locks, and optional raised base stands for ergonomic operational height.

Parameters of Heavy-Duty 5-Drawer Steel Map Cabinet

Market Comparison: Outstar OS–DT1 vs. Standard Storage Cabinets

Applications of Heavy-Duty 5-Drawer Steel Map Cabinet

• Architectural & Engineering Design Offices: Ideal for storing oversized CAD blueprints, site plans, and engineering schematics cleanly and flat.
• Government Archives & Land Resource Agencies: Ensures long-term preservation of historical geographical maps, land deeds, and public infrastructure records.
• Art Galleries, Museums & Print Shops: Safely stores high-value artwork prints, posters, calligraphic works, and photographic prints without surface abrasion.
• Universities, Technical Schools & Laboratories: Provides organized flat-file archive management for student design projects, scientific charts, and research diagrams.

Daily Usage & Maintenance Guidelines

1. Weight Distribution: Place heavier drawing sets or reference books in the lower drawers to maintain optimal cabinet stability.
2. Slide Rail Maintenance: Periodically clear dust from the slide tracks and apply a light silicone lubricant to maintain smooth, silent drawer operation.
3. Surface Cleaning: Wipe powder-coated steel surfaces with a soft, dry or slightly damp cloth. Avoid abrasive pads or harsh chemical solvents.

Packing and Storage

To ensure maximum protection during long-distance ocean transport, each OS–DT1 flat file unit is packaged using precision Knock-Down (KD) flat-pack engineering. The unit is wrapped in protective PE film, shielded with 6-side high-density foam edge protectors, and encased in a 5-ply export-grade corrugated carton.

• Single Package Size: 165 x 30 x 25 cm
• Single Gross Weight: Approx. 25.00 kg
• Container Loadability: 200 sets / 20GP; 485 sets / 40HQ (Flat-pack structure reduces shipping volume by 60% and ensures zero transit damage).

Company Profile

Outstar Office Furniture Co., Ltd. is a premier steel furniture manufacturer located in Luoyang, Henan, China. Operating a modern 70,000 sq. ft. facility equipped with 4 automated production lines, Outstar delivers a daily output of 1,500 steel units. Supported by over 11 years of industry experience, 150 skilled workers, and 15 R&D engineers, Outstar produces high-precision steel storage systems adhering strictly to ANSI/BIFMA X5, ISO9001, ISO14001, and OHSAS18001 standards. We offer complete OEM/ODM customization services for global distributors, commercial contractors, and institutional buyers.

FAQs of Heavy-Duty 5-Drawer Steel Map Cabinet

• Q: Can this map cabinet store standard A0 and A1 size drawings flat?
  • A: Yes. The cabinet is specifically designed with extra-wide flat drawers to store A0, A1, and A2 standard drawings, blueprints, and maps completely flat without folding or rolling.
• Q: Is the drawer slide smooth when filled with heavy stacks of paper?
  • A: Absolutely. The OS–DT1 utilizes heavy-duty three-section silent ball-bearing slides or roller guide rails engineered to handle heavy paper loads effortlessly without sticking or sagging.

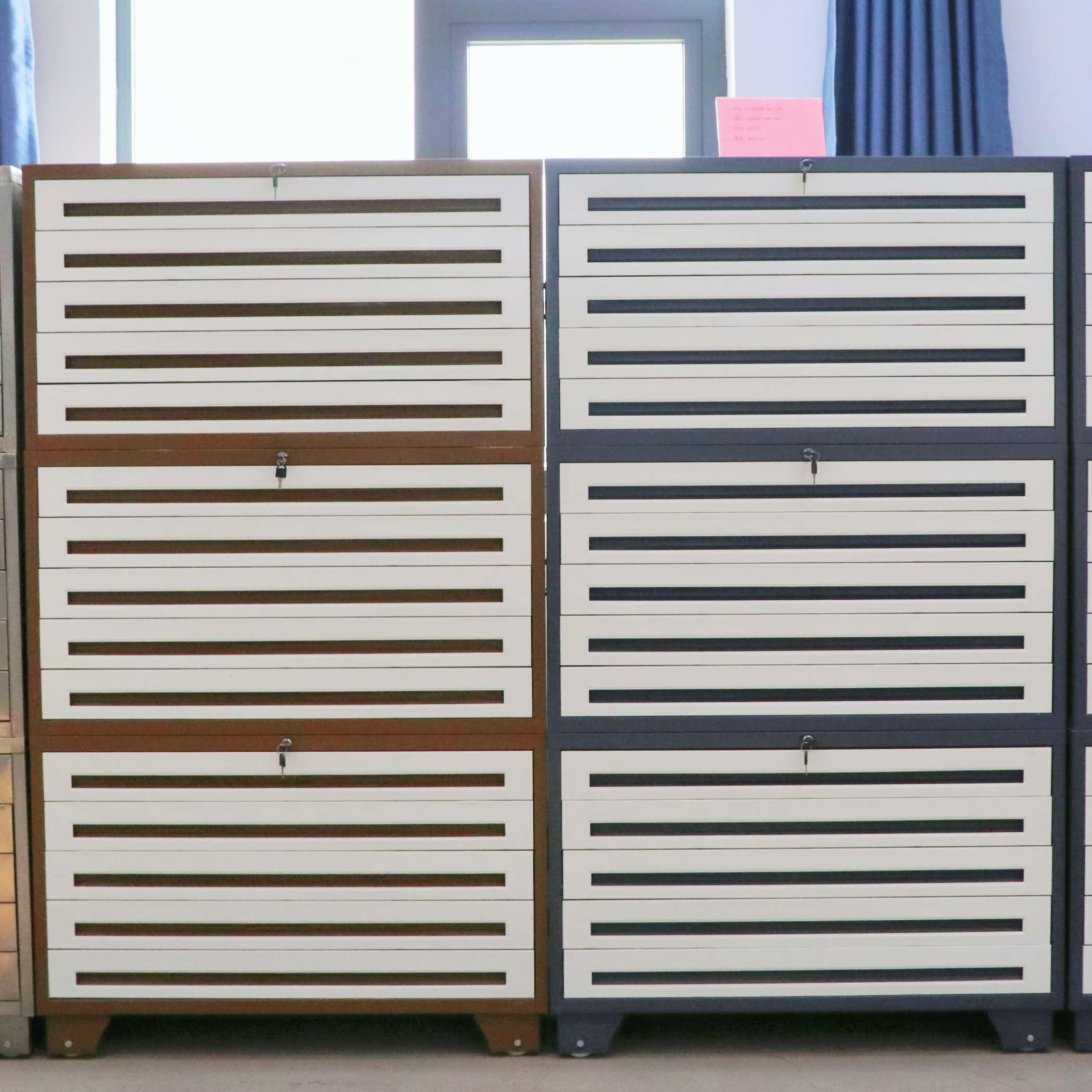

• Q: Can multiple 5-drawer map cabinets be stacked together?
  • A: Yes, the cabinet structure is built with heavy-gauge steel and reinforced corners, allowing units to be stacked vertically to save valuable floor space as your archive grows.
• Q: What customization options are available for wholesale orders?
  • A: We offer custom dimensions, plate thickness (0.4mm–1.2mm), drawer counts, RAL powder coating colors, lock configurations (key, padlock, electronic), and metal/plastic handle options.
